The classic use case for a forest plot is a systematic review or meta-analysis: each row represents one study, point sizes reflect precision (inverse-variance weights), and a pooled estimate — drawn as a filled diamond — summarises the evidence.
forrest() handles this pattern natively. This vignette walks through a simulated meta-analysis of the association between long-term fine-particulate matter (PM2.5) exposure and incident hypertension.
Simulated data
Basic meta-analysis forest plot

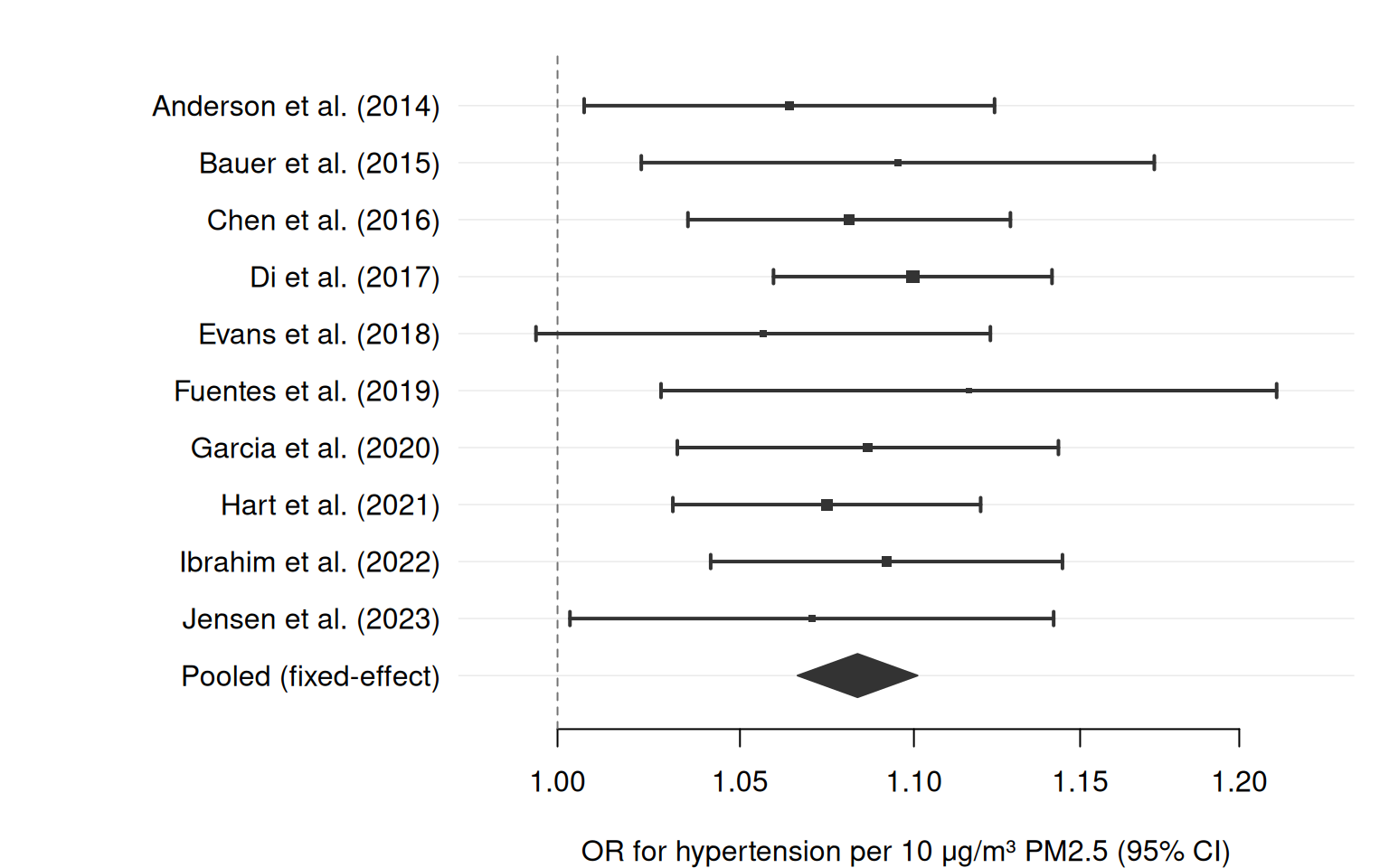

The simplest meta-analysis forest plot: studies ordered by appearance, point sizes proportional to inverse-variance weight, and a summary diamond.
forrest(
meta_all,
estimate = "or",
lower = "lower",
upper = "upper",
label = "study",
is_summary = "is_sum",
weight = "weight",
log_scale = TRUE,
ref_line = 1,
xlab = "OR for hypertension per 10 \u03bcg/m\u00b3 PM2.5 (95% CI)"
)
Adding text columns

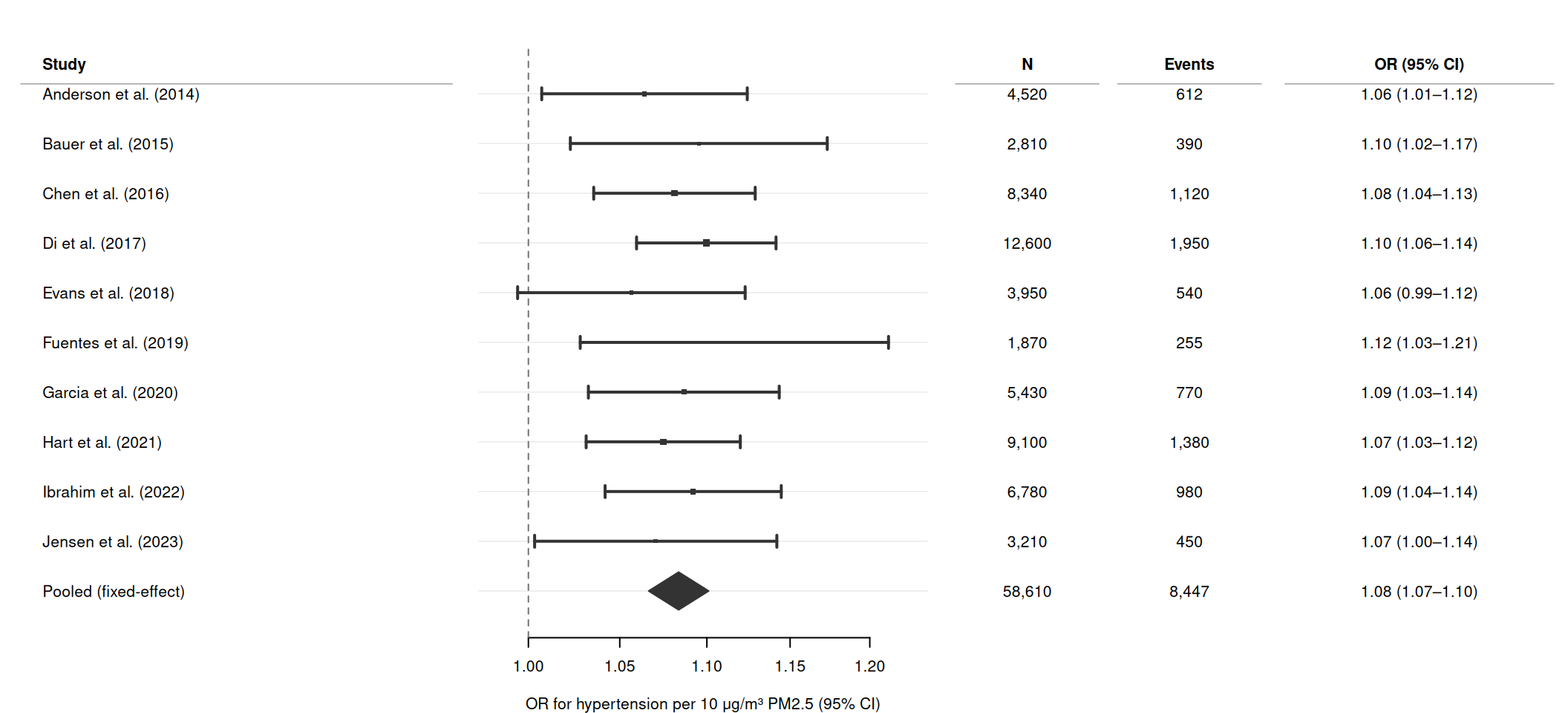

Right-hand text panels are common in published forest plots. Pass cols as a named character vector, and set header to label the study column.
forrest(
meta_all,
estimate = "or",
lower = "lower",
upper = "upper",
label = "study",
is_summary = "is_sum",
weight = "weight",
log_scale = TRUE,
ref_line = 1,
header = "Study",
cols = c(
"N" = "n_text",
"Events" = "events_text",
"OR (95% CI)" = "or_text"
),
widths = c(3.5, 3.5, 1.2, 1.2, 2.2),
xlab = "OR for hypertension per 10 \u03bcg/m\u00b3 PM2.5 (95% CI)"
)
Subgroup analyses by region

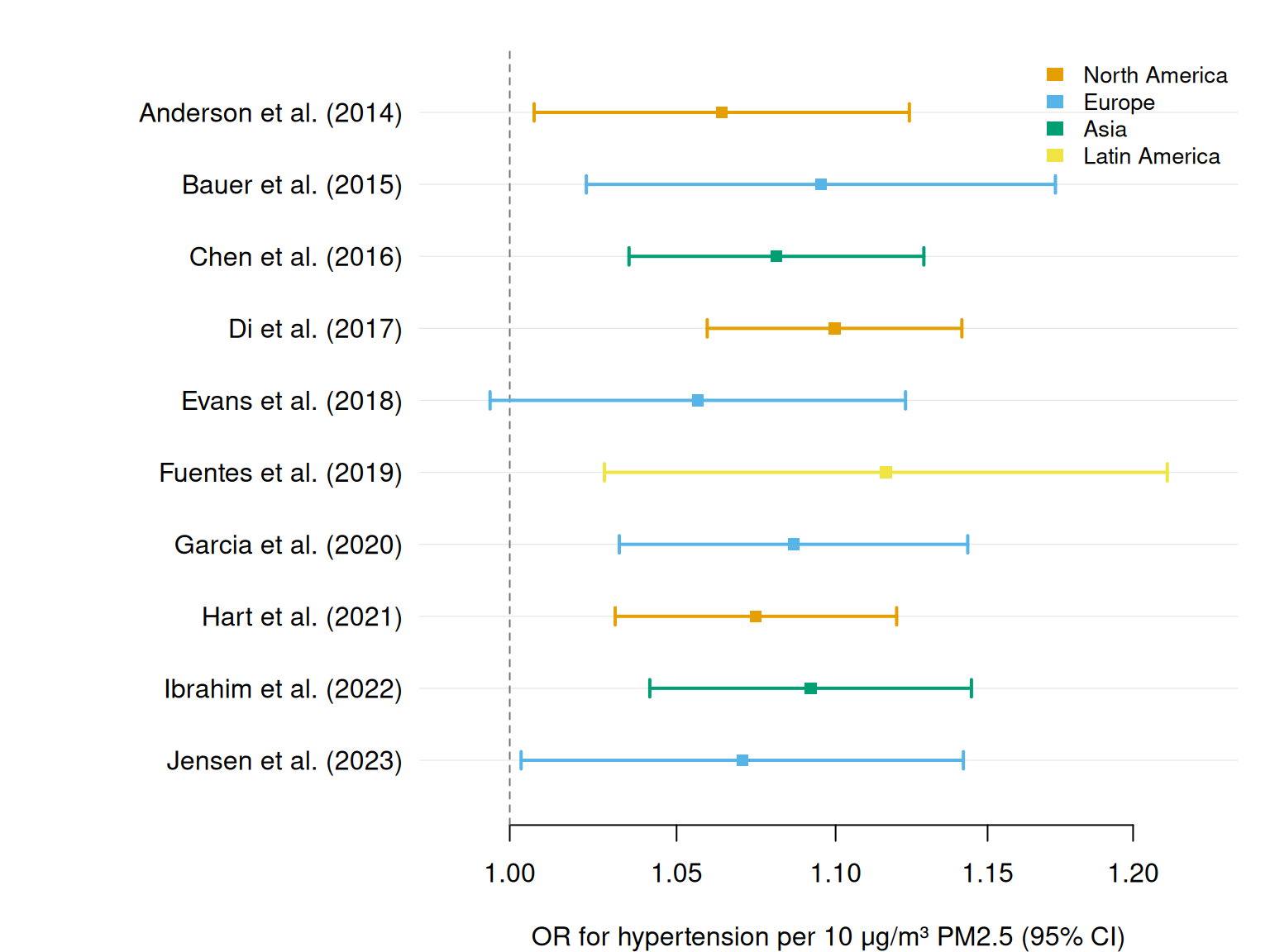

Colour by region to compare estimates across geographic subgroups. A group column triggers the Okabe-Ito palette and an automatic legend.
# Exclude pooled row for the subgroup plot; add region-level pooled rows
study_dat <- meta_all[!meta_all$is_sum, ]
forrest(
study_dat,
estimate = "or",
lower = "lower",
upper = "upper",
label = "study",
group = "region",
log_scale = TRUE,
ref_line = 1,
legend_pos = "topright",
xlab = "OR for hypertension per 10 \u03bcg/m\u00b3 PM2.5 (95% CI)"
)
Structured subgroup analysis with section headers

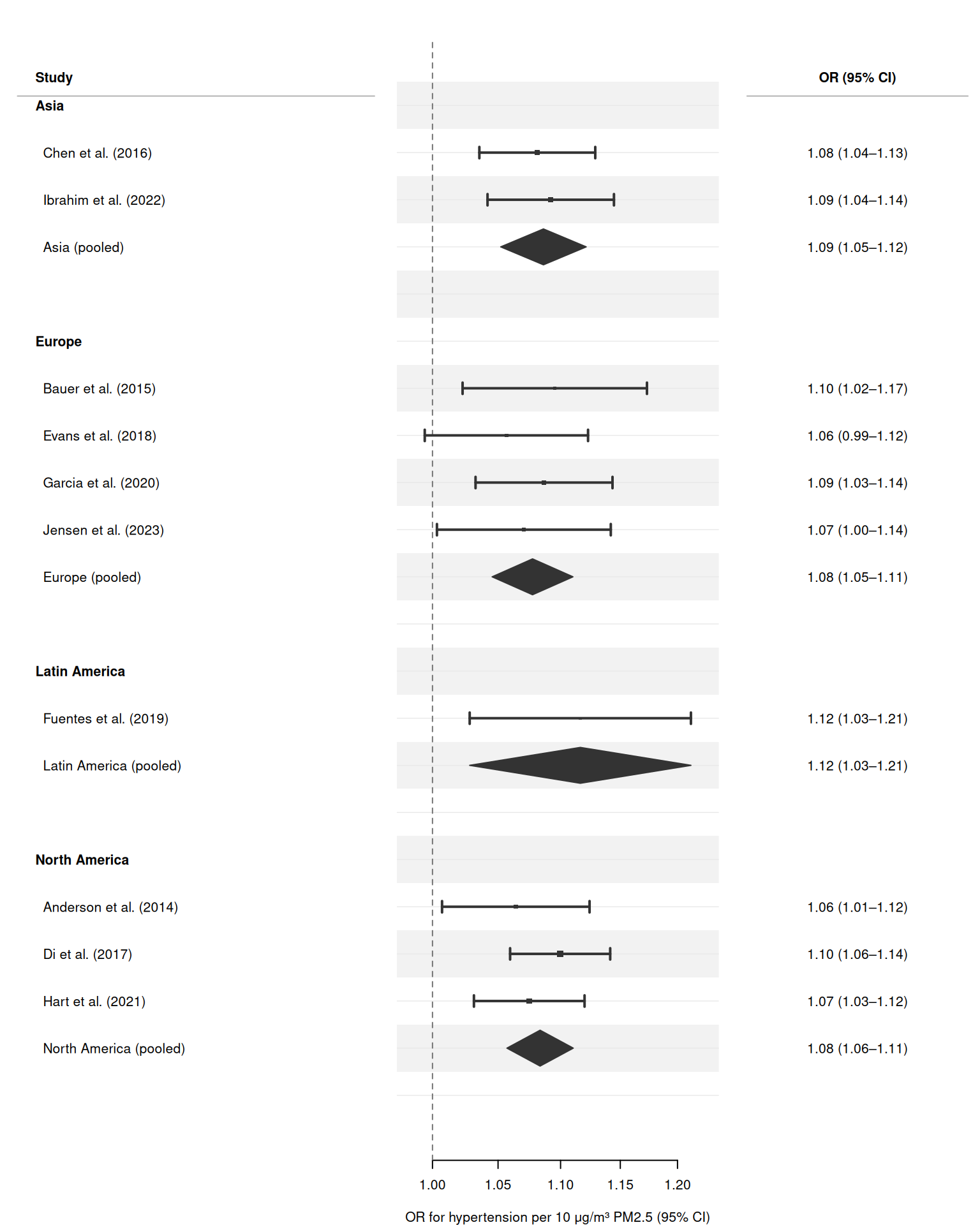

Pass section = "region" to group studies under bold region headers automatically. forrest() inserts headers, indents study labels, and adds spacers — no manual data manipulation required.
# Helper: compute fixed-effect pooled row for a subset
pool_region <- function(dat, region_label) {
w <- 1 / dat$se^2
lp <- sum(w * dat$log_or) / sum(w)
se <- sqrt(1 / sum(w))
data.frame(
study = sprintf("%s (pooled)", region_label),
region = region_label,
n = sum(dat$n),
events = sum(dat$events),
log_or = lp,
se = se,
or = exp(lp),
lower = exp(lp - 1.96 * se),
upper = exp(lp + 1.96 * se),
weight = sum(w),
is_sum = TRUE
)
}
# Build data: just the study rows and region-level pooled rows.
# No manual header or spacer rows needed.
regions <- c("Asia", "Europe", "Latin America", "North America")
structured <- do.call(rbind, lapply(regions, function(r) {
sub <- meta_dat[meta_dat$region == r, ]
rbind(sub, pool_region(sub, r))
}))
structured$or_text <- sprintf(
"%.2f (%.2f\u2013%.2f)",
structured$or, structured$lower, structured$upper
)
forrest(
structured,
estimate = "or",
lower = "lower",
upper = "upper",
label = "study",
section = "region",
is_summary = "is_sum",
weight = "weight",
log_scale = TRUE,
ref_line = 1,
header = "Study",
cols = c("OR (95% CI)" = "or_text"),
widths = c(4, 3.5, 2.5),
stripe = TRUE,
xlab = "OR for hypertension per 10 \u03bcg/m\u00b3 PM2.5 (95% CI)"
)
Multiple exposures: comparing PM2.5, NO2, and noise

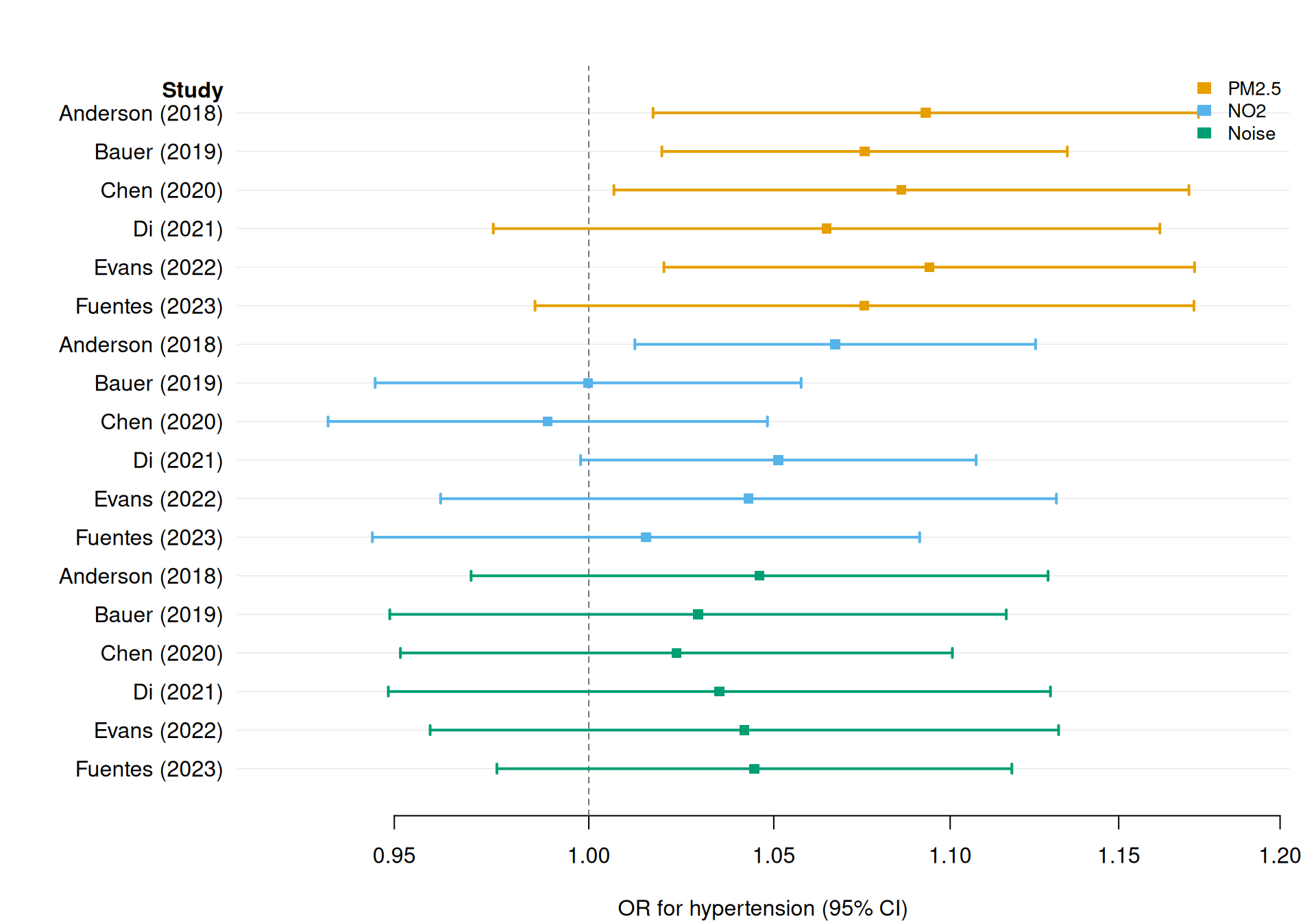

A meta-analysis may cover several exposures simultaneously. Use group to colour by exposure and dodge = TRUE to vertically separate the CIs when multiple rows share the same study label.
# Simulate effect estimates for three air-quality exposures across 6 studies
set.seed(99)
studies6 <- c("Anderson (2018)", "Bauer (2019)", "Chen (2020)",
"Di (2021)", "Evans (2022)", "Fuentes (2023)")
make_exp <- function(true_lor, n = 6) {
se <- runif(n, 0.025, 0.045)
lor <- rnorm(n, true_lor, 0.02)
data.frame(
or = exp(lor),
lower = exp(lor - 1.96 * se),
upper = exp(lor + 1.96 * se)
)
}
pm25 <- make_exp(0.08)
no2 <- make_exp(0.05)
noise <- make_exp(0.03)
multi_exp <- data.frame(
study = rep(studies6, 3),
exposure = rep(c("PM2.5", "NO2", "Noise"), each = 6),
or = c(pm25$or, no2$or, noise$or),
lower = c(pm25$lower, no2$lower, noise$lower),
upper = c(pm25$upper, no2$upper, noise$upper)
)
# Formatted OR text per row
multi_exp$or_text <- sprintf("%.2f (%.2f\u2013%.2f)",
multi_exp$or,
multi_exp$lower,
multi_exp$upper)
forrest(
multi_exp,
estimate = "or",
lower = "lower",
upper = "upper",
label = "study",
group = "exposure",
dodge = TRUE,
log_scale = TRUE,
ref_line = 1,
legend_pos = "topright",
header = "Study",
xlab = "OR for hypertension (95% CI)"
)
Saving plots
save_forrest(
file = "meta_analysis_forest.pdf",
plot = function() {
forrest(
meta_all,
estimate = "or",
lower = "lower",
upper = "upper",
label = "study",
is_summary = "is_sum",
weight = "weight",
log_scale = TRUE,
ref_line = 1,
xlab = "OR for hypertension per 10 \u03bcg/m\u00b3 PM2.5 (95% CI)"
)
},
width = 10,
height = 6
)
